CLIP top BLUMOTION combines innovative technology, award-winning design and top quality motion within the smallest space, for soft-close BLUMOTION has been seamlessly integrated into the boss.
The BLUMOTION feature can be deactivated to ensure that even smaller or lighter doors boast top quality motion.

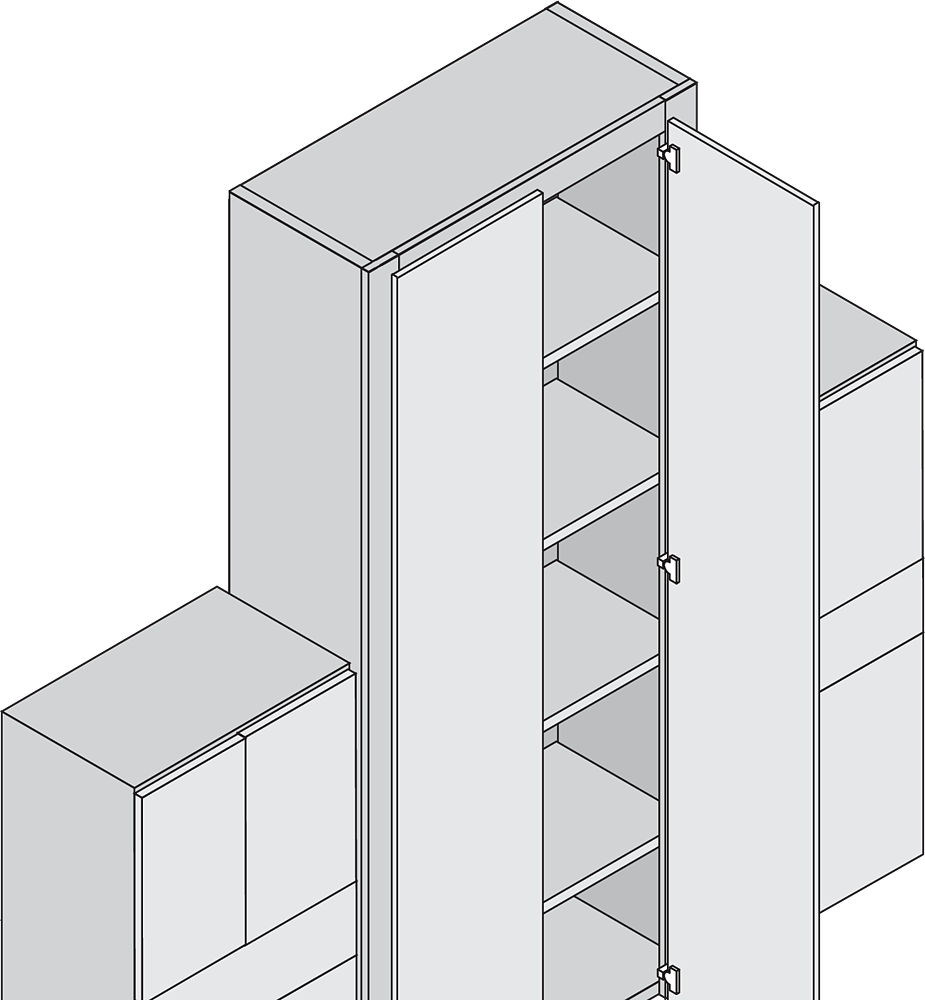

Blind Corner Hinge Overlay Application
- Hinge for blind corner overlay applications
- Clip top Blumotion with integrated Blumotion (with deactivation option)
- 95° opening angle
- Tool-free door to cabinet assembly and removal
Boss assembly: screw-on
Boss material: Steel boss
Closing mechanism: with spring
Side adjustment: +/- 2.5 mm
Depth adjustment: +/- 1 mm, With screw
Mounting plates sold separately.
Full technical data
